The HORSCH Avatar SD series is a versatile line of trailed seed drills built around the individually depth‑controlled SingleDisc coulter. Covering working widths from 9′ 10″ to 39′ 4″, the Avatar handles direct seeding, mulch seeding, conventional tillage, and seeding into standing catch crops at speeds up to 9 mph. Flexible hopper systems allow simultaneous application of up to four components, while options like selective hosing, AutoForce coulter pressure regulation, and the 20 cm NarrowDisc coulter let operators tailor the machine to virtually any cropping strategy.

PRODUCT SPECIFICATIONS

Technical Details

All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.

Key Specifications

Application & Design
  • Implement Type: Trailed seed drill with SingleDisc coulter technology
  • Primary Use: Direct seeding, mulch seeding, conventional tillage, and seeding into standing catch crops
  • Working Speed: Up to 9 mph (15 km/h) thanks to robust SingleDisc coulter design
  • Row Spacing: 6.6″ (16.7 cm) standard in 2‑row design; expandable to 13.1″ (33.4 cm) via optional selective hosing
SingleDisc Seed Coulter
  • Individual Depth Control: Each coulter is independently depth‑controlled via a stable depth control wheel for precise placement in changing or difficult soils
  • Coulter Pressure: Up to 772 lbs (350 kg) per coulter, transferred via rubber torsion suspension; adjustable mechanically or electrically via the terminal
  • Seed Placement: 6° lateral angle and 3° vertical angle place the seed diagonally below the surface for optimum soil‑to‑seed contact
  • Maintenance‑Free: All pivot points, connections, and bearings are maintenance‑free for long service life and operational reliability
  • Seed Skid: Carbide wear edge as standard for long service life
Hopper System
  • 3.16 SD & 4.16 SD: 3,800 L double hopper (40:60) or 3,800 L triple tank (30:10:60)
  • 6.16 SD & 8.16 SD: 5,000 L double hopper (40:60) as standard
  • Half‑Width Shut‑Off: Standard mechanical half‑width shut‑off on all models
Closing Wheels & Seed Fixing
  • Closing Wheel Steel: For wet and changing conditions; spring‑adjustable down force, variable angle setting; ideal for the offset method
  • Star Roller Steel: For dry soils; produces crumbly fine soil to close the seed furrow; spring‑adjustable down force, variable angle setting
  • Catching Roller: Rubber roller for safe seed placement in dry soils; creates connection to soil capillarity; can be lifted to a parking position in wet conditions
  • Uniformer: Presses seed into the furrow; ideal for green catch crops and wet conditions
Technology & Intelligence
  • eosT10 / eosT10 Pro: High‑resolution 10″ ISOBUS terminal (ISO 11783) with day/night mode, multi‑widget display, wireless task data exchange, and Remote Support
  • HorschConnect: Telematics for documenting machine performance and work quality; HORSCH Control smartphone app for calibration and machine control
  • Rotor Selection: HORSCH Assist app function for choosing the optimal metering rotor for any application

Available Options & Configurations

  • Selective Hosing: Seeding with double row spacing (6.6″ or 13.1″) and placement of different seeds at different depths through the first and second coulter rows
  • Electric Half‑Width Control: ISOBUS terminal‑operated half‑width shut‑off with SectionControl automation
  • AutoForce: Automatic coulter pressure regulation for consistent seed depth across variable field conditions
  • Electric Coulter Pressure Adjustment: Coulter pressure controlled via the terminal instead of manual mechanical adjustment
  • MiniDrill: 400 L third‑component hopper for 6.16 SD and 8.16 SD (G&F version into the coulter or via baffles behind the coulter)
  • Triple Tank: 3,800 L hopper with 30:10:60 partition for 3.16 SD and 4.16 SD
  • Hydraulic Filling Auger: Hydraulically driven at 400 kg/min for autarkic filling
  • HM+ Seed Skid: Extended‑life carbide wear edge upgrade for the seed skid
  • AutoLine: Automatic GPS‑based tramline control; eliminates track‑to‑track driving
  • Closing Wheel & Seed Fixing Variants: Closing wheel steel, star roller steel, catching roller, and Uniformer
PRODUCT SPECIFICATIONS

Technical Details

All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.

Key Specifications

Application & Design
  • Implement Type: Trailed seed drill with SingleDisc or NarrowDisc coulter technology
  • Primary Use: Direct seeding, mulch seeding, conventional tillage, and seeding into standing catch crops; also suited to rotative direct seed strategies
  • Working Speed: Up to 9 mph (15 km/h) with low horsepower requirement relative to working width
  • Row Spacing: 9.8″ (25 cm) standard, ideal for mechanical weeding management; 12 SD also available in 7.9″ (20 cm) NarrowDisc or 19.7″ (50 cm) configuration
SingleDisc Seed Coulter
  • Individual Depth Control: Each coulter is independently depth‑controlled via a stable depth control wheel for precise placement in changing or difficult soils
  • Coulter Pressure: Up to 772 lbs (350 kg) per coulter via rubber torsion suspension; adjustable mechanically or electrically via the terminal
  • Seed Placement: 6° lateral angle and 3° vertical angle place the seed diagonally below the surface for optimum soil‑to‑seed contact
  • Maintenance‑Free: All pivot points, connections, and bearings are maintenance‑free for long service life and operational reliability
  • Seed Skid: Carbide wear edge as standard for long service life
20 cm NarrowDisc Coulter (12 SD)
  • Design: Further development of the SingleDisc coulter, engineered for sub‑25 cm row spacing without compromising SingleDisc advantages
  • Coulter Pressure: Up to 617 lbs (280 kg) per coulter transmitted via a robust rubber buffer; adjustment via the terminal
  • Row Spacing: 7.9″ (20 cm) for tighter seed distribution and higher plant population density
  • Maintenance‑Free: All bearing points and connections are maintenance‑free; carbide wear edge as standard
Hopper System
  • Double Hopper: 6,300 L capacity with 60:40 partition for simultaneous application of seed and fertiliser or two different seed types
  • Triple Tank: 6,400 L capacity with 30:10:60 partition for applying up to three components independently
  • Half‑Width Shut‑Off: Standard mechanical half‑width shut‑off on all models
Closing Wheels & Seed Fixing
  • Closing Wheel Steel: For wet and changing conditions; spring‑adjustable down force, variable angle setting; ideal for the offset method
  • Star Roller Steel: For dry soils; produces crumbly fine soil to close the seed furrow; spring‑adjustable down force, variable angle setting
  • Catching Roller: Rubber roller for safe seed placement in dry soils; creates connection to soil capillarity; can be lifted to a parking position in wet conditions
  • Uniformer: Presses seed into the furrow; ideal for green catch crops and wet conditions
Technology & Intelligence
  • eosT10 / eosT10 Pro: High‑resolution 10″ ISOBUS terminal (ISO 11783) with day/night mode, multi‑widget display, wireless task data exchange, and Remote Support
  • HorschConnect: Telematics for documenting machine performance and work quality; HORSCH Control smartphone app for calibration and machine control
  • Rotor Selection: HORSCH Assist app function for choosing the optimal metering rotor for any application

Available Options & Configurations

  • NarrowDisc Coulter (12 SD): 7.9″ (20 cm) row spacing single disc coulter with up to 617 lbs coulter pressure for tighter seed distribution
  • Selective Hosing: Seeding with double row spacing (9.8″ or 19.7″) and placement of two different crops at different depths
  • Electric Half‑Width Control: ISOBUS terminal‑operated half‑width shut‑off
  • AutoForce: Automatic coulter pressure regulation for consistent seed depth across variable field conditions
  • Electric Coulter Pressure Adjustment: Coulter pressure controlled via the terminal instead of manual mechanical adjustment
  • MiniDrill G&F: 400 L hopper for a third or fourth component
  • Triple Tank: 6,400 L hopper with 30:10:60 partition as an alternative to the standard double hopper
  • Trash Wheels: Three configurations for cereal straw, high amounts of cereal straw, and maize straw; hydraulically operated with individual rubber torsion suspension
  • HM+ Seed Skid: Extended‑life carbide wear edge upgrade for the seed skid
  • AutoLine: Automatic GPS‑based tramline control; eliminates track‑to‑track driving
  • Closing Wheel & Seed Fixing Variants: Closing wheel steel, star roller steel, catching roller, and Uniformer
PRODUCT SPECIFICATIONS

Technical Details

All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.

Key Specifications

Application & Design
  • Implement Type: Heavy‑duty trailed compact disc harrow
  • Primary Use: Intensive stubble cultivation, residue management, and uniform soil consolidation
  • Target Operations: High‑horsepower tractors and large‑scale farming
Residue & Soil Management
  • DiscSystem: Large serrated discs optimized for intense mixing and chopping
  • Crop Residue: Excellent straw distribution and incorporation
  • Soil Structure: Maintains soil uniformity and consistency across the profile
Finish & Consolidation
  • RingFlex Finishing System: Ensures consistent reconsolidation and surface finish
  • Follow‑up Operations: Ideal preparation for direct seeding or drill passes

Available Options & Configurations



Application & Design
  • Implement Type: 3‑point mounted compact disc harrow
  • Primary Use: Shallow stubble cultivation, seedbed preparation, and incorporation of cover crops or fertilizers
  • Working Speed: Optimized for high speeds to maximize soil mixing and fine tilth production
Disc & Crop Flow
  • DiscSystem: Aggressively serrated discs mounted in pairs for high clearance and residue flow
  • Soil Mixing: Produces a high proportion of fine soil in the germination zone
  • Residue Handling: Excellent performance in heavy straw and organic matter
Consolidation
  • Packer Options: Wide selection of packers for precise depth control and reconsolidation
  • Seedbed Quality: Uniform reconsolidation across the full working width
PRODUCT SPECIFICATIONS

Technical Details

All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.

Key Specifications

Application & Design
  • Implement Type: Heavy‑duty trailed compact disc harrow
  • Primary Use: Intensive stubble cultivation, residue management, and uniform soil consolidation
  • Target Operations: High‑horsepower tractors and large‑scale farming
Residue & Soil Management
  • DiscSystem: Large serrated discs optimized for intense mixing and chopping
  • Crop Residue: Excellent straw distribution and incorporation
  • Soil Structure: Maintains soil uniformity and consistency across the profile
Finish & Consolidation
  • RingFlex Finishing System: Ensures consistent reconsolidation and surface finish
  • Follow‑up Operations: Ideal preparation for direct seeding or drill passes

Available Options & Configurations

  • Finishing Systems: RingFlex and heavy‑duty roller configurations
  • Depth Adjustment: Hydraulic working depth control
  • Transport Equipment: Integrated transport chassis with road homologation
  • Seeding Add‑ons: Compatible with HORSCH MiniDrill
HORSCH Joker 7RT+ with minidrill
PRODUCT HIGHLIGHTS

get peace of mind

with HORSCH's Comprehensive Warranty
  • Built to Last
    All equipment sold after January 1, 2024 comes equipped with a standard 3-year warranty.
  • Proven, Integrated Systems
    Coverage applies to factory‑engineered HORSCH components designed to perform as a complete system.
  • Dealer‑Backed Support
    Warranty service is handled through authorized HORSCH dealers using genuine parts and trained technicians.
HORSCH | JOKER SERIES

Detailed Specifications

Avatar 3.16 – 8.16 SD 3.16 SD 4.16 SD R 4.16 SD 6.16 SD 8.16 SD
Working width (ft. in.) 9' 10" 13' 1" 13' 1" 19' 8" 26' 3"
Row spacing (in.) 6.6" 6.6" 6.6" 6.6" 6.6"
Number of seed coulters (Piece) 18 24 24 36 48
Seed hopper capacity – double hopper (L) 3,800 (40:60) 3,800 (40:60) 3,800 (40:60) 5,000 (40:60) 5,000 (40:60)
Seed hopper capacity – triple tank (L) 3,800 (30:10:60) 3,800 (30:10:60) 3,800 (30:10:60) — —
Hopper capacity MiniDrill (L) — — — 400 400
Coulter pressure (lbs) 772 772 772 772 772
Seed coulter Ø (in.) 18.9" 18.9" 18.9" 18.9" 18.9"
Closing wheels Ø (in.) 13" 13" 13" 13" 13"
Depth control wheels Ø (in.) 15.7" 15.7" 15.7" 15.7" 15.7"
Transport width (ft. in.) 9' 10" 14' 2" 9' 10" 9' 9" 9' 9"
Transport height (ft. in.) 11' 6" 11' 6" 11' 6" 10' 10" 13' 1"
Length – lower link linkage (ft. in.) 22' 10" 22' 10" 22' 10" 25' 8" 25' 8"
Length – adjustable drawbar linkage (ft. in.) 25' 7" 25' 7" 25' 7" 28' 5" 28' 5"
Axle load (lbs) 5,510 – 8,820 7,055 – 9,480 7,495 – 9,920 9,480 – 13,670 11,465 – 14,770
Vertical load (lbs) 3,305 – 5,070 4,410 – 5,730 4,630 – 6,170 5,730 – 7,275 7,055 – 8,820
Tyre size – seed unit / wagon 600/55‑26.5 600/55‑26.5 600/55‑26.5 600/55‑26.5 600/55‑26.5
Operational speed (mph) 4 – 9 4 – 9 4 – 9 4 – 9 4 – 9
Horsepower requirement (HP) 125 140 140 210 270
Implement attachment – lower link Cat. III and III/IV Cat. III and III/IV Cat. III and III/IV Cat. III and III/IV Cat. III and III/IV
Implement attachment – adjustable drawbar Hitch Ø 46 – 58 mm Hitch Ø 46 – 58 mm Hitch Ø 46 – 58 mm Hitch Ø 46 – 58 mm Hitch Ø 46 – 58 mm
Implement attachment – ball head K 80 K 80 K 80 K 80 K 80
Avatar 8 – 12 SD 8 SD 9 SD 10 SD 12 SD
Working width (ft. in.) 26' 3" 29' 6" 32' 10" 39' 4"
Row spacing (in.) 9.8" 9.8" 9.8" 7.9" / 9.8" / 19.7"
Number of seed coulters (Piece) 32 36 40 60 / 48 / 24
Coulter pressure – seed coulters (lbs) 772 772 772 617 / 772 / 772
Seed hopper capacity – double hopper (L) 6,300 (40:60) 6,300 (60:40) 6,300 (40:60) 6,300 (40:60)
Seed hopper capacity – triple tank (L) 6,400 (30:10:60) 6,400 (30:10:60) 6,400 (30:10:60) 6,400 (30:10:60)
Hopper capacity MiniDrill (L) 400 400 400 400
Seed coulter Ø (in.) 18.9" 18.9" 18.9" 18.9"
Closing wheels Ø (in.) 13" 13" 13" 13"
Depth control wheels Ø (in.) 15.7" 15.7" 15.7" 15.7"
Transport width (ft. in.) 9' 9" 9' 9" 9' 9" 9' 9"
Transport height (ft. in.) 13' 1" 13' 1" 13' 1" 13' 1"
Length (ft. in.) 28' 7" 28' 7" 28' 7" 28' 7"
Axle load (lbs) 15,430 – 19,180 16,095 – 20,280 17,195 – 22,045 18,520 – 23,150
Vertical load (lbs) 1,765 – 3,305 2,205 – 3,525 2,645 – 4,410 3,525 – 5,510
Tyre size – seed unit / wagon 520/85 R 38, 580/70 R 38, 710/70 R 38, 900/60 R 32, twin 520/85 R 42 520/85 R 38, 580/70 R 38, 710/70 R 38, 900/60 R 32, twin 520/85 R 42 520/85 R 38, 580/70 R 38, 710/70 R 38, 900/60 R 32, twin 520/85 R 42 520/85 R 38, 580/70 R 38, 710/70 R 38, 900/60 R 32, twin 520/85 R 42
Tyre size – support wheels Single 10.8/75‑15.3 Single 10.8/75‑15.3 Single 10.8/75‑15.3 Double 10.8/75‑15.3
Operational speed (mph) 4 – 9 4 – 9 4 – 9 4 – 9
Horsepower requirement (HP) 220 250 280 300
Implement attachment – adjustable drawbar Ring hitch Ø 58 – 79 mm Ring hitch Ø 58 – 79 mm Ring hitch Ø 58 – 79 mm Ring towing eye Ø 58 – 79 mm
Implement attachment – ball head K 80 K 80 K 80 K 80
CHOOSE YOUR MODEL

Featured Premium Pre-Owned Equipment

It does not always have to be new
  • used 2015 CASE IH 1255 planters for sale at HJV Equipment Alliston, ON — exterior front
    $90,000.00
    2015 CASE IH 1255
    Alliston, ON
    See details
  • used 2013 CASE IH 1250 planters for sale at HJV Equipment Norwich, ON — exterior front
    $72,000.00
    2013 CASE IH 1250
    Norwich, ON
    See details
  • $50,000.00
    1998 KINZE 2600
    Alliston, ON
    See details
  • used 2020 CASE IH 2150 planters for sale at HJV Equipment Winchester, ON — exterior front
    $295,000.00
    2020 CASE IH 2150
    Winchester, ON
    See details

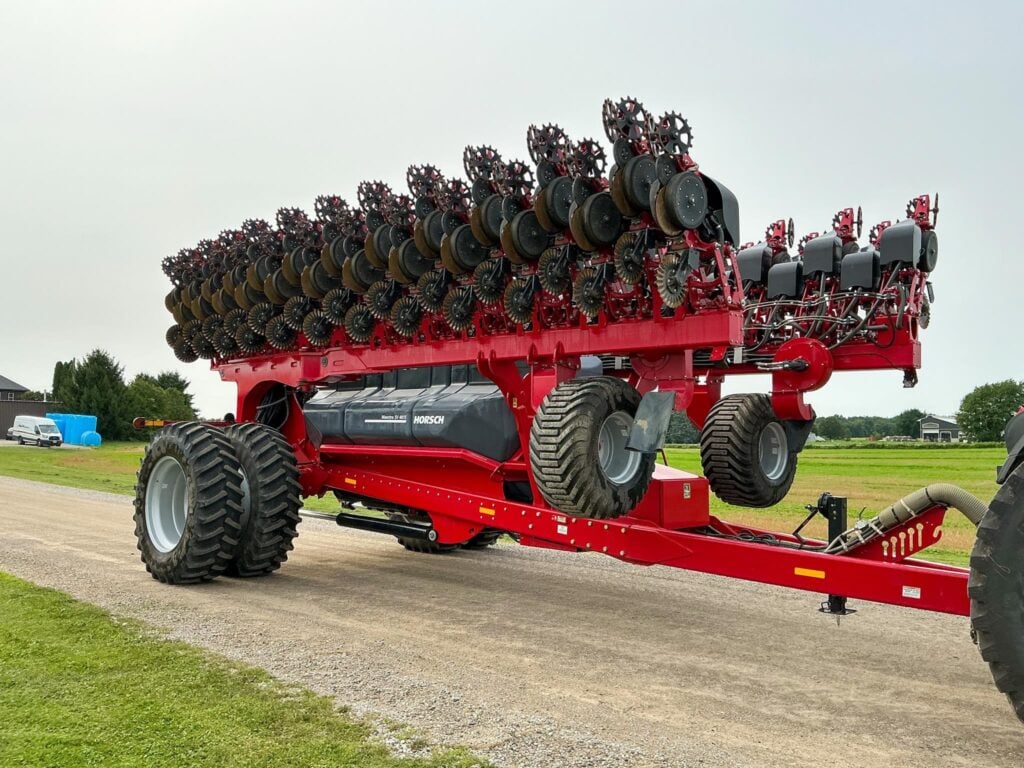

  • used 2024 HORSCH MAESTRO SV 4815 planters for sale at HJV Equipment Norwich, ON — exterior front
    $650,000.00
    2024 HORSCH MAESTRO SV 4815
    Norwich, ON
    See details
  • View All

    Find an HJV location near you today!

    We take pride in helping you find your dream agriculture equipment. Locate your nearest HJV equipment dealer and explore a wide range of New and Pre-Owned equipment.
    Find your nearest HJV Equipment location.
    Enter your postal code or address in the field below to see which locations can best serve you.
    HORSCH Terrano 3FX
