horsch

maestro sv/SX

single grain seed drill

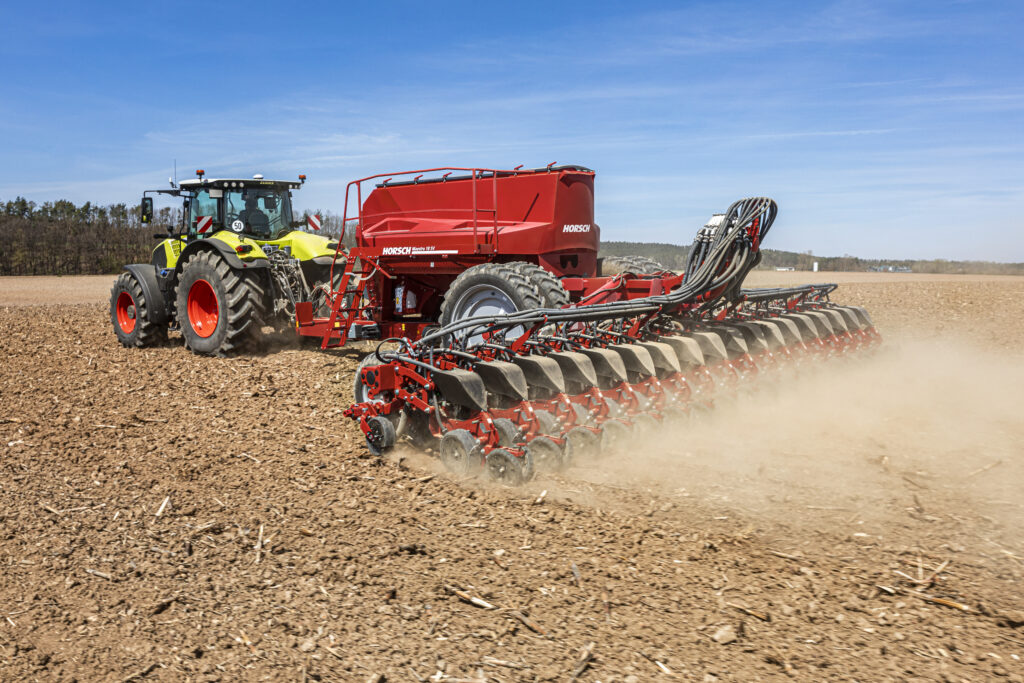

The HORSCH Maestro SV/SX is a versatile single grain seed drill for maize, sunflowers, sugar beet, sorghum, rapeseed, soybeans, and other bean crops. Built around the proven seed wagon concept with the MTS (Main Tank Supply) central hopper system, it pneumatically meters both fertiliser and seed from large-capacity central hoppers with up to 7,000 L of fertiliser and 4,000 L of seed.

PRODUCT SPECIFICATIONS

Technical Details

All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.

download brochure

Key Specifications

Application & Design

Implement Type: Trailed single grain seed drill with central seed wagon (MTS system)
Crops: Maize, sunflowers, sugar beet, sorghum, rapeseed, soybeans, and other bean species
Working Speed: Up to 7.5 mph (12 km/h) with AirVac (SV); up to 9 mph (15 km/h) with AirSpeed (SX)
Row Configurations: 12, 16, 18, 24, or 36 rows across working widths from 9 m to 18 m

Main Tank Supply System (MTS)

Central Hopper: Seed and fertiliser are metered pneumatically from a central pressurised hopper, eliminating irregular fill levels at individual rows during SectionControl and tramline operation
Version 1: 2,200 L seed / 5,400 L fertiliser (9–12 m wagons) or 2,000 L seed / 7,000 L fertiliser (18 m wagon)
Version 2 (50:50): 3,800 L / 3,800 L (9–12 m wagons) or 4,000 L / 5,000 L (18 m wagon); recommended for rotations with a high share of legumes

Row Unit

Parallelogram: 13.8″ (35 cm) wide, stable design with maintenance-free bushings and just under 15.7″ (40 cm) of vertical travel for uneven terrain
Coulter Pressure: 331 – 772 lbs (150 – 350 kg) per row via hydraulic cylinder; adjustable electrically from the terminal or automatically with AutoForce
Sowing Depth: 0.6″ to 3.5″ (1.5 – 9 cm) via pin adjustment across 14 positions
Double Disc Coulter: Seed discs with reliable 2-row angular ball bearings; standard catching roller for grain embedding; V-shaped closing wheels for furrow consolidation

AirVac & AirSpeed Metering

AirVac (SV): Vacuum-based singulation with gravity drop tube placement; maximum flexibility for all crops at speeds up to 7.5 mph
AirSpeed (SX): Overpressure singulation that captures and accelerates grains through a shoot pipe into the soil; higher working speeds up to 9 mph
Universal Singulator: No adjustment or replacement required when changing crops; optimised contour ensures reliable singulation across all grain sizes
Grain Sensor: Monitors sowing success in the drop/shoot tube; counts grains, measures spacing, and reports doubles and gaps

Technology & Intelligence

eosT10 / eosT10 Pro: High-resolution 10″ ISOBUS terminal with day/night mode, multi-widget display, wireless task data exchange, and Remote Support
HorschConnect: Telematics for machine performance, work quality transparency, remote error access, and HORSCH Control smartphone app for calibration and singulation testing
AutoLine: Automatic GPS-based tramline control; eliminates track-to-track driving
Metering Disc Selection: HORSCH Assist app function to determine the optimal metering disc for any crop, speed, rate, and row spacing

Available Options & Configurations

AutoForce: Automatic soil-dependent coulter pressure regulation via Piezo sensors; maintains consistent grain embedding depth across variable field conditions (150 – 350 kg range)
Compact Liquid Tank (CLT) System: 800 L liquid fertiliser tank with piston diaphragm pump; application directly into the seed furrow or behind the press wheel; optional individual row flow monitoring and half-side control
Microgranular Application: Pneumatic application IN the row (seed furrow) for granulate and crop care agents, or ON the row via baffles for shallow distribution of underseed or slug pellets
Single Disc Fertiliser Coulter: Independently suspended via its own parallelogram; placement depth 2″ – 3.5″ (5 – 9 cm); tool-free coulter pressure adjustment from 88 – 287 lbs (40 – 130 kg)
50:50 Hopper Partition: Equal seed/fertiliser split for rotations with high legume share
V‑Press Wheel Options: Narrow (normal conditions), wide (lighter sites), wide profiled (light soils and fine seeds), spike wheel (medium to light soils), finger wheel (medium to heavy soils)
Front Tool Options: Trash wheels or cutting disc attachable at a standardised flange plate in front of the disc blade
Twin Tyres: 300/95 R 46 twin tyres available for 18 and 24.45/50 SV/SX models
Agitator Shaft: External fertiliser tank agitator for consistent metering of difficult fertiliser types
ContourFarming: Additional radar sensors for slope-compensated application on hilly terrain
SectionControl: Automatic GPS-based row shut-off and activation for overlap prevention
VariableRate: Variable-rate seeding via application maps

PRODUCT HIGHLIGHTS

One Hopper, Every Row

Central pneumatic metering eliminates row-level fill problems

The MTS system meters seed and fertiliser pneumatically from a single central hopper to every row on the machine. That means no more uneven fill levels when running SectionControl or tramline control, faster refilling from one large hopper instead of dozens of individual row boxes, and consistent application rates from first row to last. With up to 7,000 L of fertiliser and 4,000 L of seed capacity, the Maestro SV/SX keeps you in the field longer between fills — covering more acres per day with less downtime.

PRODUCT HIGHLIGHTS

AirVac and AirSpeed:
Two Systems, One Platform

Choose the metering principle that matches how you farm

The Maestro SV uses AirVac vacuum metering with a gravity drop tube — ideal when you need maximum flexibility across crops like beet, rapeseed, and sunflowers at speeds up to 7.5 mph. The Maestro SX uses AirSpeed overpressure metering that captures each singulated grain in an air current and shoots it into the soil, holding placement accuracy at speeds up to 9 mph. Both systems share the same universal singulator that requires zero adjustment when switching crops, and both include in-tube grain sensors for real-time monitoring of doubles, gaps, and spacing

PRODUCT HIGHLIGHTS

get peace of mind

with HORSCH's Comprehensive Warranty

Built to Last
All equipment sold after January 1, 2024 comes equipped with a standard 3-year warranty.
Proven, Integrated Systems
Coverage applies to factory‑engineered HORSCH components designed to perform as a complete system.
Dealer‑Backed Support
Warranty service is handled through authorized HORSCH dealers using genuine parts and trained technicians.

HORSCH Maestro SV/SX - Technical Specifications

Maestro SV / SX	12 SV	16 SV	18 SV	24.50 SV	12 SX	16 SX	18 SX	24.50 SX	24 SX
Dimensions & weight
Number of rows	12	16	18	24	12	16	18	24	24
Transport width (ft. in.)	9' 10"	9' 10"	9' 10"	9' 10"	9' 10"	9' 10"	9' 10"	9' 10"	9' 10"
Transport height (ft. in.)	13' 1"	13' 1"	13' 1"	13' 1"	13' 1"	13' 1"	13' 1"	13' 1"	13' 8"
Transport length (ft. in.)	25' 7"	25' 7"	25' 7"	25' 7"	25' 7"	29' 2"	25' 7"	25' 7"	31' 2"
Weight incl. seed wagon (lbs)	24,470	26,455	26,895	30,425	24,470	26,455	27,780	29,760	28,660
Axle load (lbs)	15,430 – 19,180	16,315 – 19,840	17,195 – 22,045	18,960 – 23,810	15,430 – 19,180	16,315 – 19,840	17,195 – 22,925	22,045 – 23,150	22,045 – 22,045
Vertical load (lbs)	3,305 – 5,290	3,525 – 6,615	2,205 – 4,850	4,410 – 6,615	3,305 – 5,290	3,525 – 6,615	2,205 – 4,850	4,410 – 6,615	6,615 – 6,615
Hopper system
Seed / fertiliser capacity – version 1 (L)	2,200 / 5,400	2,200 / 5,400	2,200 / 5,400	2,200 / 5,400	2,200 / 5,400	2,200 / 5,400	2,200 / 5,400	2,200 / 5,400	2,000 / 7,000
Seed / fertiliser capacity – version 2 (L)	3,800 / 3,800	3,800 / 3,800	3,800 / 3,800	3,800 / 3,800	3,800 / 3,800	3,800 / 3,800	3,800 / 3,800	3,800 / 3,800	4,000 / 5,000
Row unit
Coulter pressure – electric adjustment via terminal (lbs)	331 – 772	331 – 772	331 – 772	331 – 772	331 – 772	331 – 772	331 – 772	331 – 772	331 – 772
Depth control wheel Ø (in.)	15.7"	15.7"	15.7"	15.7"	15.7"	15.7"	15.7"	15.7"	15.7"
Press wheels Ø (in.)	11.8" / 13"	11.8" / 13"	11.8" / 13"	11.8" / 13"	11.8" / 13"	11.8" / 13"	11.8" / 13"	11.8" / 13"	11.8" / 13"
Catching roller	●	●	●	●	●	●	●	●	●
Row spacing (in.)	30" / 30" / 31.5"	30" / 30" / 31.5"	17.7" / 19.7"	17.7" / 19.7"	27.6" / 30" / 31.5"	27.6" / 30" / 31.5"	17.7" / 19.7"	17.7" / 19.7"	27.6" / 30"
Sowing depth (in.)	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"	0.6" – 3.5"
Drop height – seed (in.)	17.7"	17.7"	17.7"	17.7"	—	—	—	—	—
Operational
Metering system	AirVac	AirVac	AirVac	AirVac	AirSpeed	AirSpeed	AirSpeed	AirSpeed	AirSpeed
Operational speed (mph)	1 – 7.5	1 – 7.5	1 – 7.5	1 – 7.5	4 – 9	4 – 9	4 – 9	4 – 9	4 – 9
Horsepower requirement (HP)	200	220	220	300	220	250	250	350	400
Power requirement during operation (AMP)	45	50	50	60	45	50	50	60	65
Telescopic axle	●	●	●	●	●	●	●	●	●
Tyre size – seed wagon	520/85 R 38	520/85 R 38, 580/70 R 38, 800/65 R 32	520/85 R 38, 580/70 R 38, twin 300/95 R 46	580/70 R 38, twin 300/95 R 46	520/85 R 38, 580/70 R 38	520/85 R 38, 580/70 R 38	520/85 R 38, 580/70 R 38, twin 300/95 R 46	580/70 R 38, twin 300/95 R 46	520/85 R 42
Attachment
Adjustable drawbar – ring hitch ball joint	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm	Pin Ø 42 or 51 mm
Adjustable drawbar – ring hitch	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm	Ø 58 – 79 mm
Ball head	K 80	K 80	K 80	K 80	K 80	K 80	K 80	K 80	K 80
